Dynamics 365 Sales Order: Item Picked and Picking List

In the previous post of this series, you learned to create and confirm the sales order. In this blog post, we will walk you through another process of the sales order that is Dynamics 365 picking list creation of the items picked from the warehouse. And by reading this post, you will understand the functional and technical process behind choosing these items.

Once the order has been confirmed, you will need to ship the items to customers. The most significant parts of this process are to pick the items from the warehouse and complete the necessary arrangements for their delivery. Let’s begin with picking the items. The first option is to use the picking form to manually pick items for the sales order. This process is exactly like the purchase order registration process. The second option requires the user to have the two-step picking method enabled. Once enabled, you can pick the items through the picking list registration.

Now let’s perform the function.

Dynamics 365 Picking List Creation for Sales Order: Functional Walkthrough

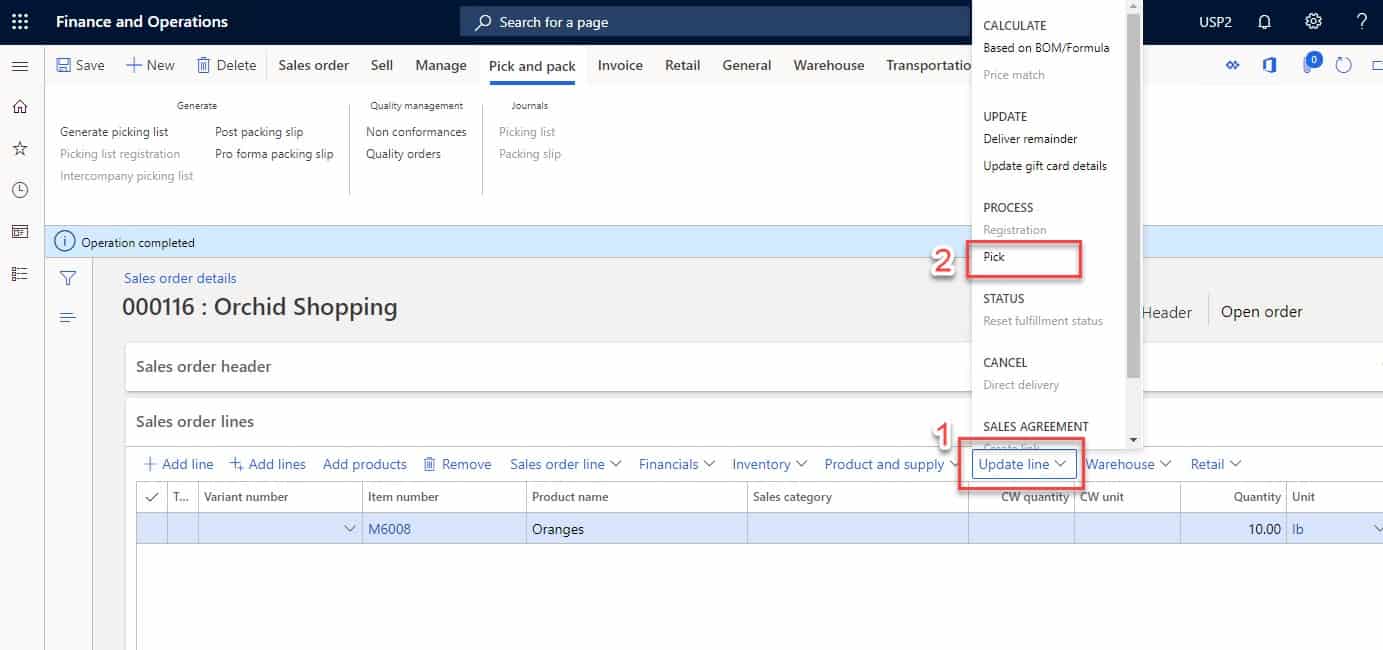

  1. First,  open the Sales Order and click on Update line/Pick in the toolbar of the order line.

Dynamics 365 Picking List-Step 1

  1. Once you are in the pick section, you will use the lower picking lines pane to insert lines. There are two options for this step as well. The first option is to use the +Add picking line button in the toolbar in the upper pane. The second option is to manually enter records through the +Add button in the lower pane.

Picking item Sales Order-Step 2

  1. It is always a good idea to practice both methods, even if you end up favoring one over the other. Moving on. Now that you have completed the previous steps, you need to create the Generate Picking List. In order to do this, click on the ‘Pick and pack’ tab. From there, you will click on “PickingList”.

Dynamics 365 Picking List-Step 3

  1. Take a moment and process what you have done so far. Once you are comfortable completing these steps, move on. The next course of action is to check the details of the sales order lines. You will do this by clicking on “Line” and then “OK”.

Picking item Sales Order-Step 4

  1. If the Picking list receipt is enabled, you will see the Posted Picking list receipt beneath the ‘Pick and pack’ tab under the journals.

Dynamics 365 Picking List-Step 5

Dynamics 365 Picking List Creation for Sales Order: Technical Walkthrough

We have covered the functional part of picking the items and generating the picking list receipt of the sales order. Now it’s time to work through the technical recap of this process. There are four primary tables involve: “WMSPickingListRoute”, “WMSPickingListRouteLink”, “WMSOrderTrans”, and “WMSShipment”.

Entity Relationship Diagram (ERD) for Dynamics 365 Picking List Creation for Sales Order

The Entity Relationship Diagram (ERD) will give a more thorough understanding of the functionality of the picking items process. The ERD shows all the cardinality constraints relationships among the tables. Now let’s see what that looks like:

Dynamics 365 Picking List-ERD

Below you will see a Runnable Class (job)

class ibCreateSOPickingList
{
    /// <summary>
    /// Runs the class with the specified arguments.
    /// </summary>
    /// <param name = "_args">The specified arguments.</param>
    public static void main(Args _args)
    {
        SalesFormLetter_PickingList salesFormLetter;
        SalesTable      salesTable = salesTable::find('001011'); // replace '001011' your sales order number
        salesFormLetter = SalesFormLetter_PickingList::newPickingList();
        salesFormLetter.transDate(systemDateGet());
        salesFormLetter.update(salesTable,
                            systemdateget(),
                            SalesUpdate::All,
                            AccountOrder::None,
                            NoYes::No,
                            NoYes::No);
    }
}

WMSPickingListRoute

The WMSPickinglistRoute table contains information concerning the picking routes, which are used in warehouse management systems to control the picking process.

Fields Data Type Description
ShipmentId String This field contains ShipmentId details for warehouse management.
ParmId String This field contains ParmId of sales orders.
LogisticsPostalAddressId String This field contains information about LogisticPostalAddressid.
PickingAreaRoteId String This field contains information about pickingAreaId of  sales orders.
DlvDate Date This field contains the information about delivery date.
Customer String This field contains information about customers.
ShipmentType Enum This field contains information about shipment types.

WMSOrderTrans

The WMSOrderTrans table stores information from the sales order transaction line details, and it is used for item picking, shipping, and pallet transportation.

Fields Data Type Description
OrderId String Information about sales order id.
ShipmentId String Shipment id information for the warehouse management system.
RouteId String Route id for the warehouse management system.
InvendTransId String This field stores the Inventory Transaction id.
InvendtransRefId String Inventory Transfer id.
ItemId String Information about the Item id.
Qty Real Information about the quantity.
ItemTagging Enum Item tagging details.

WMSShipment

WMSShipment table helps to track all the inbound and outbound shipment details by using shipment id. You can originate a shipment by using any of the three types of order i.e. sales order, transfer order, or production order. Also, this table not only stores the expected shipment details along with shipment addresses but also contains details of license plates and inventory warehouse.

Fields Data Type Description
ShipmentId String Shipment id information for warehouse management system.
StatusId String The status of the picking route.
PackingType Enum Information about packing type (i.e) all, same customer, and order.
RequestedShipDate Date Information about requested ship dates for warehouse management system.
InventSiteId String The Invent Site id.
PickExpeditionStatus Enum The status of pickExpedition (i.e) completed.

INVENTTRANSORIGIN

This is the master table for the inventory transaction data we just have created. Below we have explained some major columns of this table.

Fields Data Type Description
InventTransId string The unique identifier that corresponds to the order line item column of the same name.
ItemId string The unique identifier for the inventory item
Party int64 The Party id that corresponds to the vendor.

INVENTTRANS

This is the detailed table of InventTransOrigin with a record of every inventory transaction against the line item referenced by InventTransID. This table can get us every detail of the inventory transaction such as Quantity, Invoice ID, Project ID, and Item ID. In the table below, we have mentioned some important columns along with their descriptions.

Field Data Type Description
ItemId string The inventory item id of the item is repeated.
InvoiceId string Link to invoice data.
Qty int The inventory quantity transacted.
Voucher string Link to ledger voucher data.
Dateinvent DateTime Date of the inventory transaction.
DateFinancial DateTime Date of a financial post of inventory transaction.
InventDimId string Company code.
InventTransOrigin Int64 The RecId value of relevant records that exist in InventTransOrigin table.

CUSTTABLE

CustTable contains information about the customers for account receivable and Sales & Marketing in Dynamics 365. There are options to setup payment methods other than cash i.e. Check, Credit card, Postdated check, etc, and this setup is maintained in CustTable. Let’s have a look at some important columns below with their descriptions.

Fields Data Type Description
AccountNum string The information about customer account number.
Blocked Enum Blocked information.
InvoiceAccount string Invoice account on which invoice will be posted.
InventSiteId string Site for the sales order.
InventLocation string Warehouse for the sales order.

Summary

In this blog post, we have discussed the picking list creation process in Dynamics 365. The detailed steps mentioned above will help you master a very important process of the sales order that is picking items. You can pick items in two ways, either by doing it manually or through posting the pickinglist. This information and training aim to develop a deeper understanding of the functional and technical parts of the picking process. Knowing these differences will help you understand how the system should work and what the system should do. In the next part of this blog post series, you will learn how to post the packing slip in Dynamics 365, as it is the most important part before invoicing. The good news is that the next part is quite similar to what we have done previously, so you should be able to pick it up fairly quickly.

We sincerely hope that you enjoyed part 8 of our exciting series on the Dynamics 365 data model. We aim to provide quality service at all times.  And as always, if you need to reach me, you know how to get in touch by reaching out to me here.  — Brandon Ahmad, founder of InstructorBrandon and Dynatuners.
